Hello donatela
The needle barrier splint shown needs to be re-padded. No knitting machine will work properly with this.
Or you can get a new one.

Lg chris

Here you get Information to the theme:
http://wollpalast.de.tl/Nadelsperrschiene.htm
LG chris

Hi,
dieser Forenbeitrag wäre auch noch interessant, wenn es um die neu Polsterung der Nadelsperrschiene geht.
(This forum post would also be interesting if it concerns the new upholstery of the needle locking rail.)
[Ovaj bi post na forumu također bio zanimljiv ako se radi o novom presvlaku šine za zaključavanje igle.]

viewtopic.php?t=43449

Thank you all for the info, i will be rebuilding my sponge bar, and i hope i succeed.
Donatela

I renewed the spongy rod, oiled the K-sarriage, the machine does not pick up the pattern needles (D) when i turn KC key. I`ve watched countless videos "Ask Jack" i`ve used some on my machine, and for some i don`t have enough knowledge to disassemble the machine, every thing i`ve done doesn`t help to fix the error.
Sorry, i`m writing through a Croatian - English translator.
pictures follow
donatela

Hello donatela
According to your profile, you also have a kh840. The punched card mechanism is the same for the 892 and the 840.
Why don't you try the 840 carriage on the 892? What happens to the needle selection if you try exactly the same thing with the 840 carriage as with the 892?
Does anything change?
Thanks for your feedback LG chris

Hi,
Bedauerlich das die Maßnahmen noch nicht geholfen haben.
(It's unfortunate that the measures haven't helped yet.)
[Šteta što mjere još nisu pomogle.]
Wenn es mit dem Schitten vom KH-840 immer noch nicht funktioniert ... dann lag es doch nicht daran
(If it still doesn't work with the KH-840 carriage... then that wasn't the problem
[Ako i dalje ne radi s KH-840 slajdom... onda to nije bio problem ]

In diesem Link, wird auf deutsch gezeigt, wie du die Maschine aufschrauben und reinigen kannst kannst:
(This link shows in German how you can unscrew and clean the machine: )
[Ova poveznica pokazuje na njemačkom kako možete odvrnuti i očistiti stroj: ]
http://www.strickmoden.de/technik/index.html

Ich denke, da musst du den Google Übersetzer noch öfter benutzen.
(I think you need to use Google Translate more often.)
[Mislim da trebate češće koristiti Google Translate.]

Ferner hatte ich dir den Link zum kostenlosen Download "Brother KH864-KH868-KH894-KR830-KR838-KR850-KL116 Service Manual for Brother Knitting Machine" schon gegeben. Auf Seite 5 wird die Funktionsweise der Nadelauswahl erklärt, einfach mal schauen, ob nach der Reinigung, das so funktioniert wie beschrieben.
(I had also already given you the link to the free download “Brother KH864-KH868-KH894-KR830-KR838-KR850-KL116 Service Manual for Brother Knitting Machine”. On page 5, how the needle selection works is explained, just take a look and see if it works as described after cleaning.
[Također sam vam već dao vezu za besplatno preuzimanje “Brother KH864-KH868-KH894-KR830-KR838-KR850-KL116 Servisni priručnik za Brother Knitting Machine”. Na stranici 5 objašnjeno je kako radi odabir igle, samo pogledajte i provjerite radi li kako je opisano nakon čišćenja.

Petra_68 hat geschrieben: ↑Di Jun 04, 2024 09:00 ....
https://mkmanuals.com/brother-kh864-kh8 ... anual.html
....

LG Petra

Good luck Petra

Greeting!
I tried the k carriage from kh 840 to kh 892 over 24 pins , and the same thing happened, only the end pins went to D position.
I printed out the manual "Service manual for knitting machine and ribbing attachment" Brother model kh-864, kh -894
and now i`m trying to find the cause of the error.
Thank you
Donatela

All right, the edge needles are generated by the carriage, the rest by the pattern unit. You will have to disassemble the machine and look for the pattern unit. This is not as difficult as it sounds.
Too much oil can sometimes be rather negative. But you need to see the pattern unit to be clear about this.
LG chris

I had a similar problem, in the link are many pictures of the disassembled machine, which show you that it is not so difficult to approach it. Take courage
Chris

viewtopic.php?t=44814

Hello everyone!

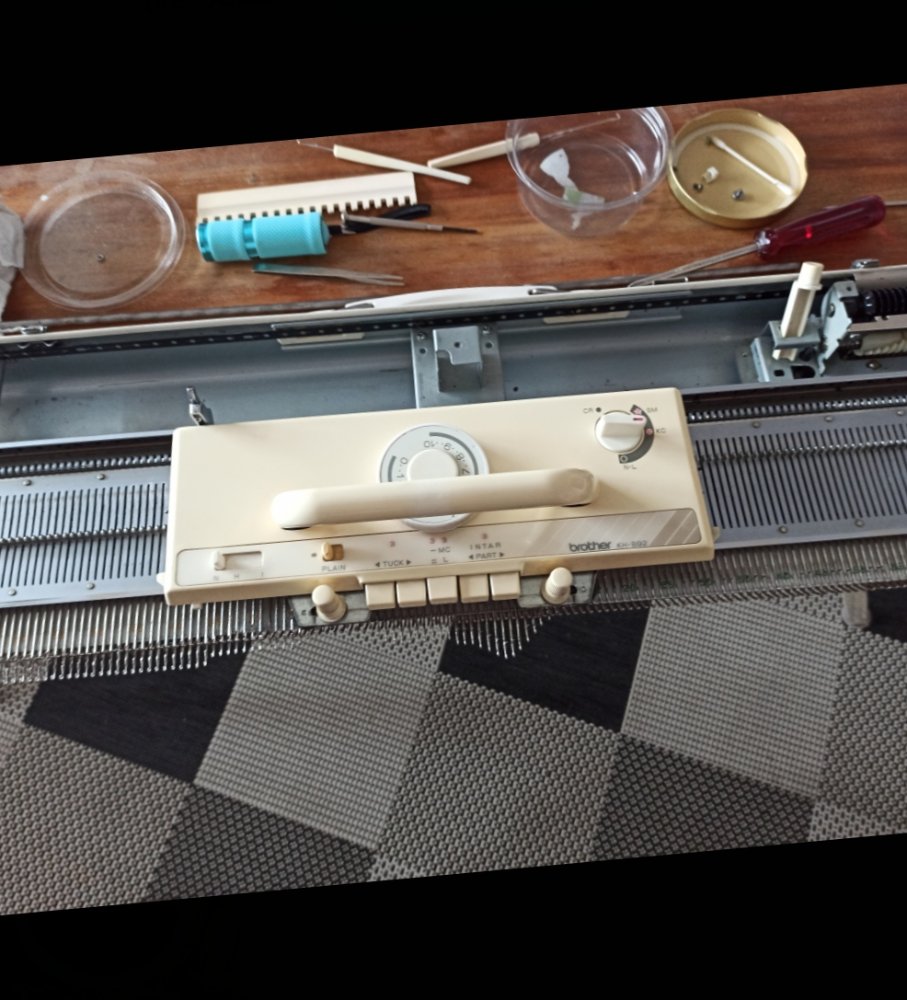

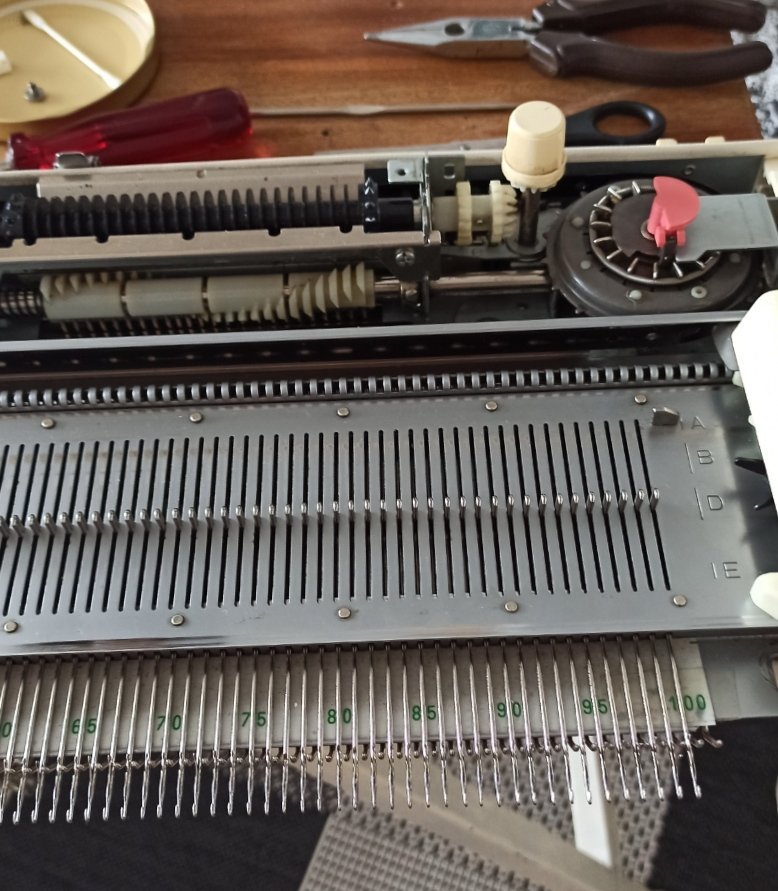

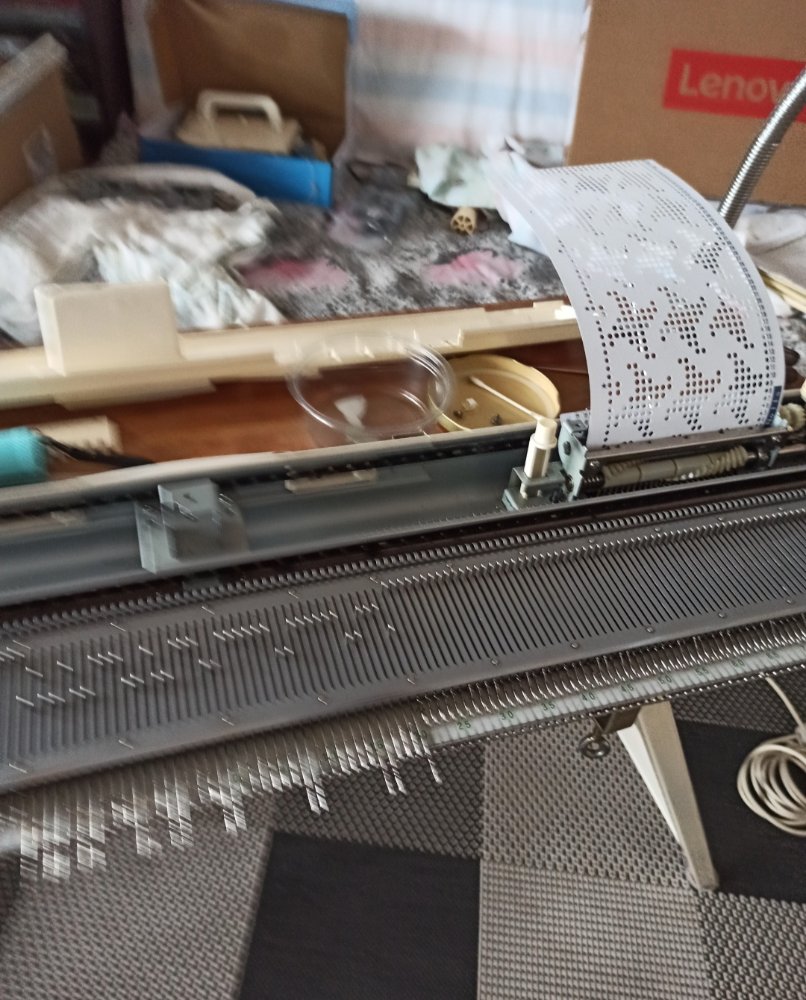

Rebuilt the rail for holding the needles. Dismantled the punched card mechanism as in the video "ASK Jack". I used Ballistol oil to dissolve impurities, there were a lot of rubbery accumulations. It seems I succeeded. My machine raises the needles to the D position using the KC button. The test of the punched card mechanism without wool was successful and the test with the punched card was successful. Thank you all, especially Petra, who helped me with great patience despite the language problem. Thank you from the bottom of my heart.
I will try to post photos
Donatella

Gratuliere
Ich liebe die Brother Strickmaschinen mit Lochkarten und freue mich über jede Maschine, die wieder aus ihrem Dornröschenschlaf erweckt werden kann.
Richtige Service Expertise habe ich aber nicht, aber wenn man sich einmal die Maschine im Inneren genau anschaut und nichts zerbrochen ist, dann sieht man auch schnell, dass wird schon wieder (irgendwie).
Dank Dir liebe Donatella und Deiner Rückmeldung, bin ich heute mit deiner Fehlermeldung, wieder etwas schlauer geworden.
Und Dank Chris (Alias "Dreckspatz" Problem, vor einiger Zeit. Kann ich jetzt zwei Fehlersymtome zuordnen.
Auch ich habe zu Danken

(Congratulations
I love the Brother knitting machines with punch cards and am happy about every machine that can be awakened from its slumber.
I don't have any real service expertise, but if you take a close look at the inside of the machine and nothing is broken, then you'll quickly see that it'll work out again (somehow).
Thanks to you, dear Donatella, and your feedback, I became a little wiser today with your error message.
And thanks to Chris (Aka "Dreckspatz" problem, some time ago. I can now assign two error symptoms.
I also have to thank


LG Petra

Dear Petra!
I am very grateful to you for everything and I am very happy that I managed to get my Brother machine working again, these are tests, I hope it will work with wool as well.
Thanks to others for their advice.
Greetings Donatela

Yeah....it works again
Congratulations
LG chris
